Signal Generator

Wednesday, 11 August 2021 18:17

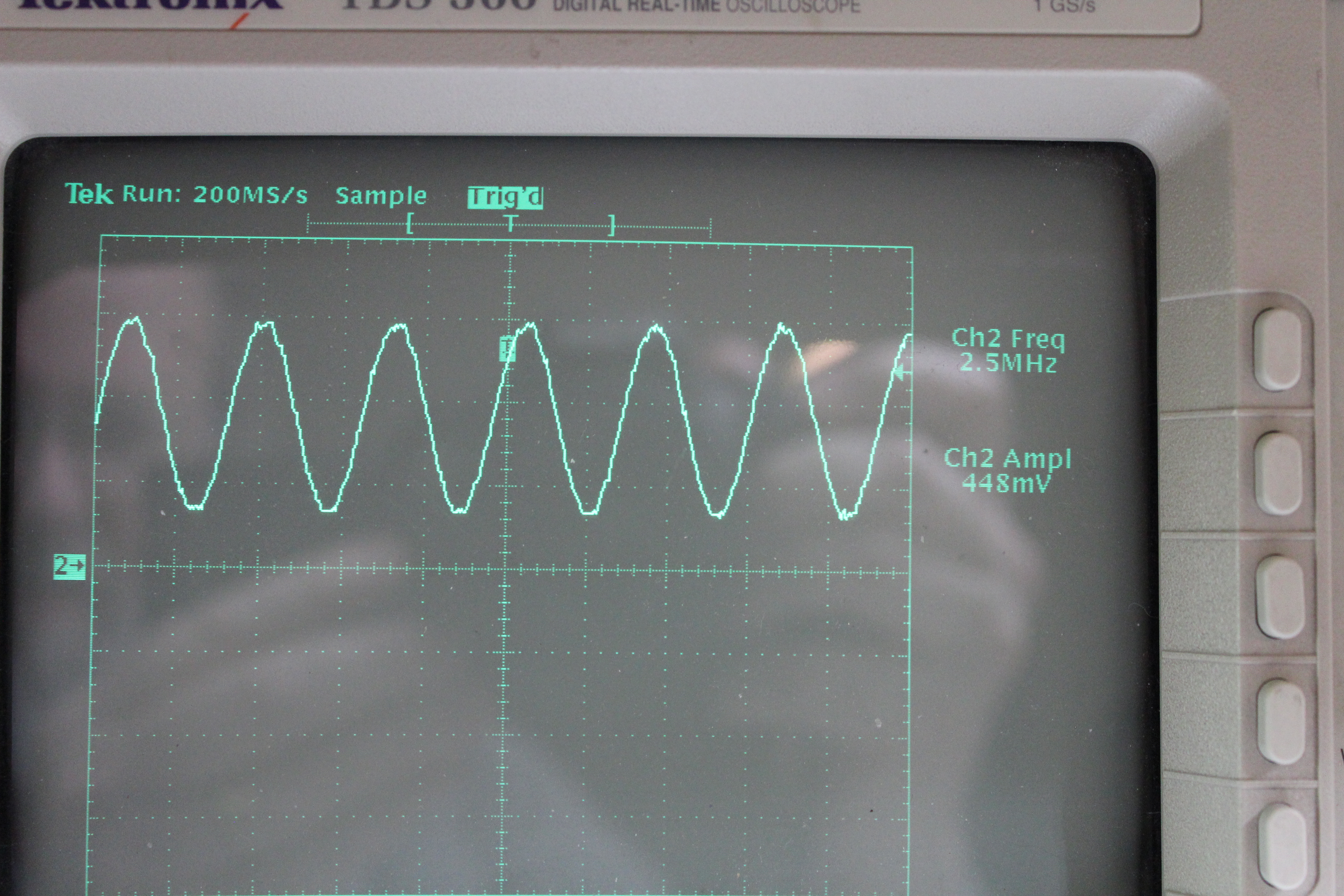

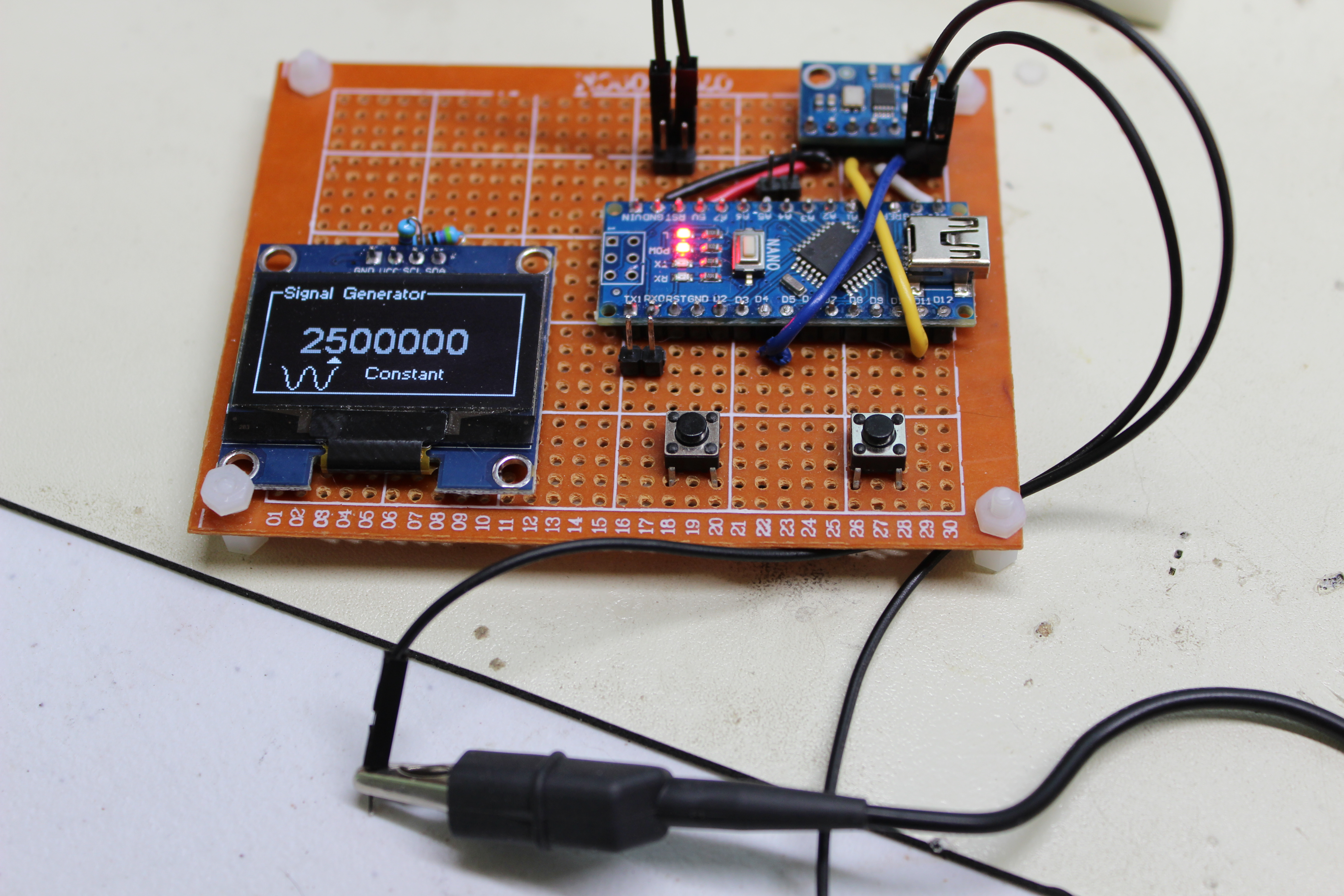

I played around with building an Arduino Nano version of a Signal Generator. The project is on the brown prototyping board. It uses an AD9833 board (upper right on proto) and a 1.3 inch OLED display (lower left on proto). Two momentary switch buttons are connected to digital inputs on the Nano. You can also see that the oscilloscope is reading quite close to the programmed sine wave frequency.

I read about the project in an instructables.com posting by Peter Balch. Please note:  What is shown above is wired to different digital inputs and was easily changed in the 'ino' file provided on Peter's page. (https://www.instructables.com/Signal-Generator-AD9833/).

Published in Arduino Projects
Read more...

Solar Data

Saturday, 12 June 2021 16:21
Published in Solar Data
Read more...

My uBitx v5 Build

Sunday, 28 April 2019 15:59

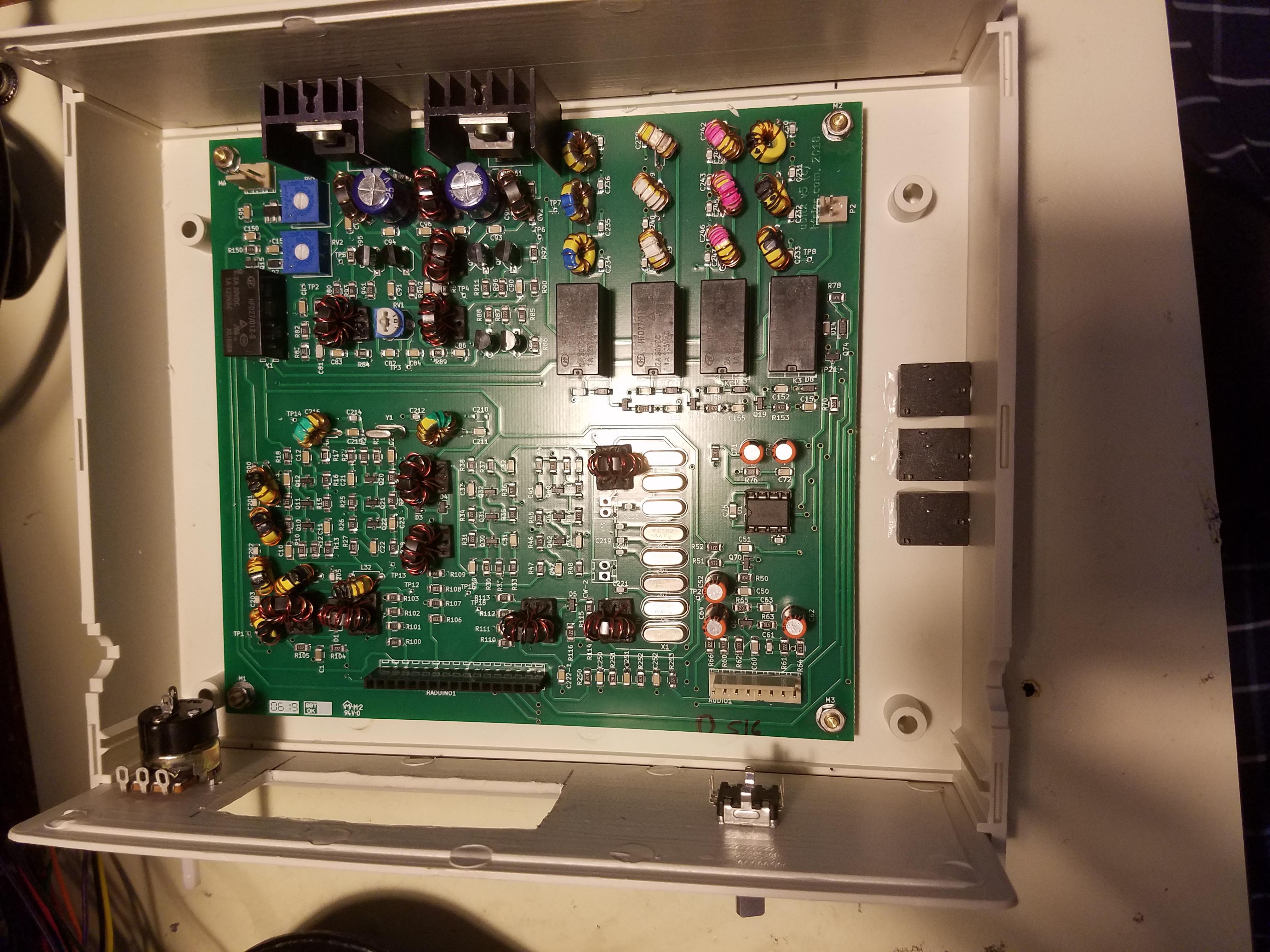

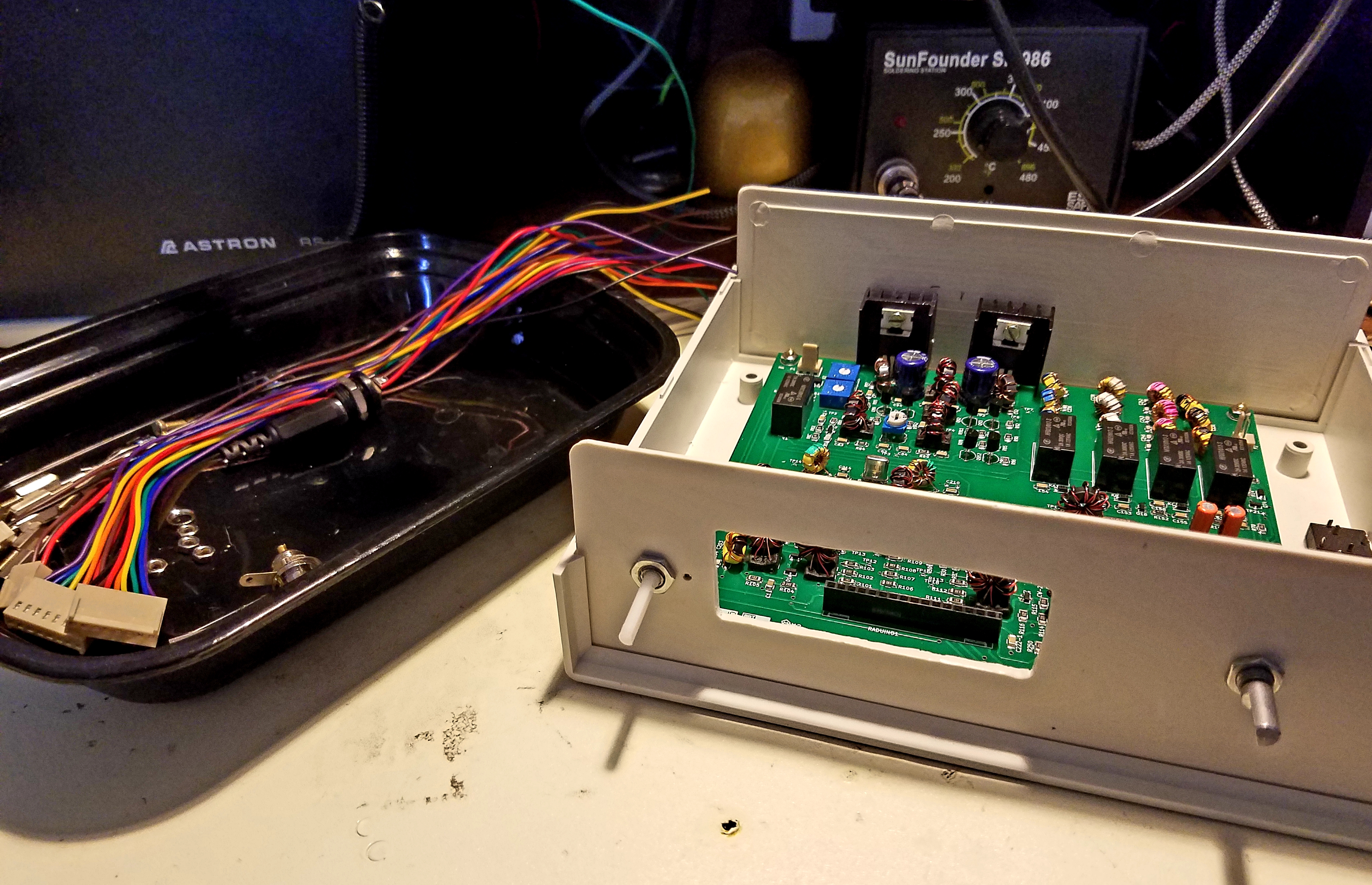

Starting my uBitx build. I am using an EF01 case for my unit.
