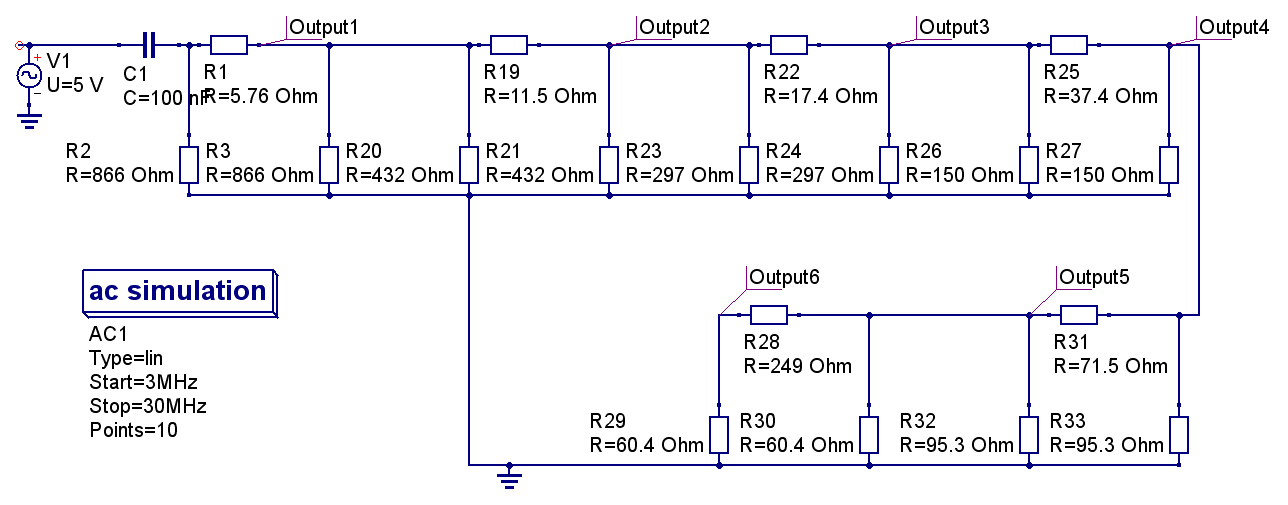

Schematic of Step Attenuator

Searched online to find some schematics of step attenuators and then edited schematic into QUCS.

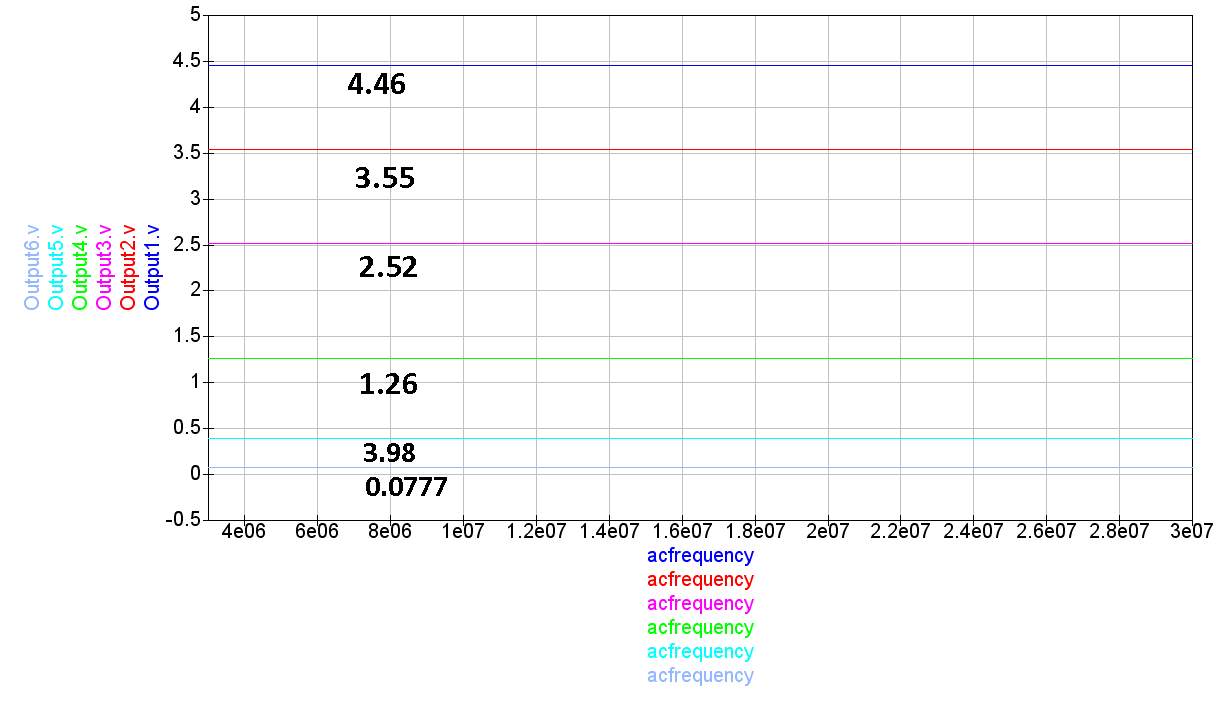

Simulator result

DB

Volts Expected DB Calc DB
5
4.46 1 -0.99
3.55 3 -2.97
2.52 6 -5.95
1.26 12 -11.97
0.403 22 -21.87
0.0675 42 -37.39

The +20 db step is off quite a bit.

Make a Programming Cable for a Yaesu FT-4X

I referenced this video to modify a Baofeng cable to make a programming cable for a Yaesu FT-4X.



  • Pulled 3.5 mm audio pin out of cable



Pulled out 3.5mm pin



  • Open case at USB end of the cable gently with small screwdriver. Pry at the cable stress relief end.
  • Watch this video (Yaesu FT-4X Programming Cable) and dig out the needed diode from your parts stock.

  • solder it up



Soldered Diode between TX and RX. Anode goes to TX.



Soldered diode between TX/RX (anode to TX)



  • Test the cable with programming software available at yaesu.com
  • Reassemble the case
